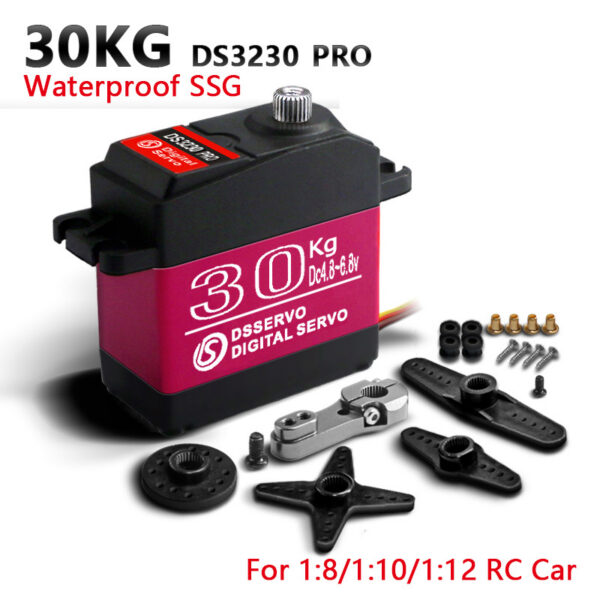

DSSERVO DS3230 PRO MG 30 kg·cm Waterproof Digital Servo
DS3230 PRO MG waterproof digital servo with supplier-listed IP66 protection, brass gears and double bearings. 4.8–6.8 V with 180°/270° options; compare torque by voltage before requesting a quote.
Description
DS3230 PRO MG Waterproof Digital Servo
The DS3230 PRO MG waterproof digital servo is a high-torque model for RC vehicle and robotics mechanisms. Supplier materials identify it as a 30 kg·cm class model and list an IP66 rating. The specification chart gives separate performance figures at 5 V and 6.8 V, so compare the figures at your intended supply voltage.
Key features
- 30 kg·cm class model label; supplier-listed stall torque is 28.5 kg·cm at 5 V and 38 kg·cm at 6.8 V.

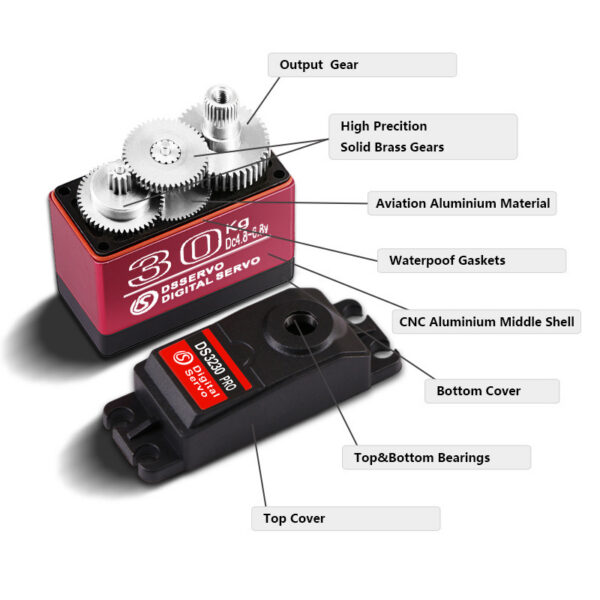

- Supplier-listed IP66 protection, waterproof gaskets, and an aluminum middle shell.
- Solid brass gear train, output gear, and double bearings as shown in the product materials.

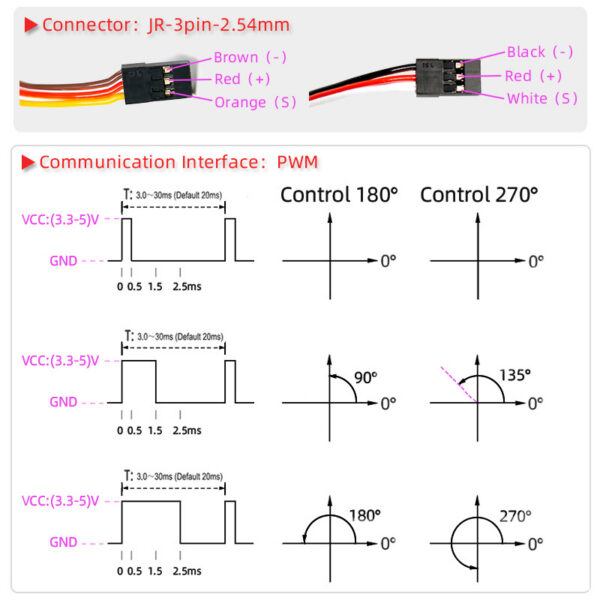

- PWM control with 180° or 270° travel configurations, depending on the selected setup.
- JR-compatible 3-pin, 2.54 mm connector; 300 ± 5 mm lead length.

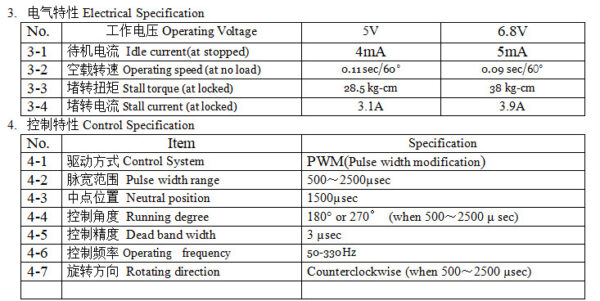

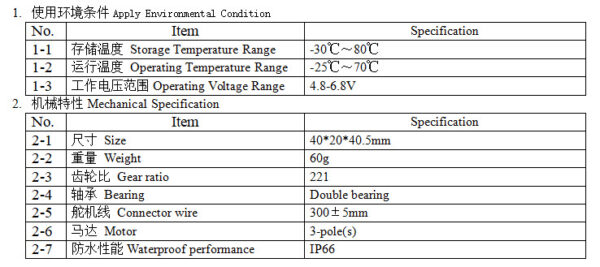

Specifications
| Model | DS3230 PRO MG |
|---|---|
| Servo type | Digital servo; PWM control |
| Operating voltage | 4.8–6.8 V |
| Stall torque (supplier-listed) | 28.5 kg·cm at 5 V; 38 kg·cm at 6.8 V |
| No-load speed (supplier-listed) | 0.11 sec/60° at 5 V; 0.09 sec/60° at 6.8 V |
| Idle current | 4 mA at 5 V; 5 mA at 6.8 V |
| Stall current | 3.1 A at 5 V; 3.9 A at 6.8 V |
| Travel | 180° or 270° configuration; 500–2500 μs pulse range |
| Neutral pulse / dead band | 1500 μs / 3 μs |
| Operating frequency | 50–330 Hz |
| Rotation direction | Counterclockwise with 500–2500 μs signal, as listed |

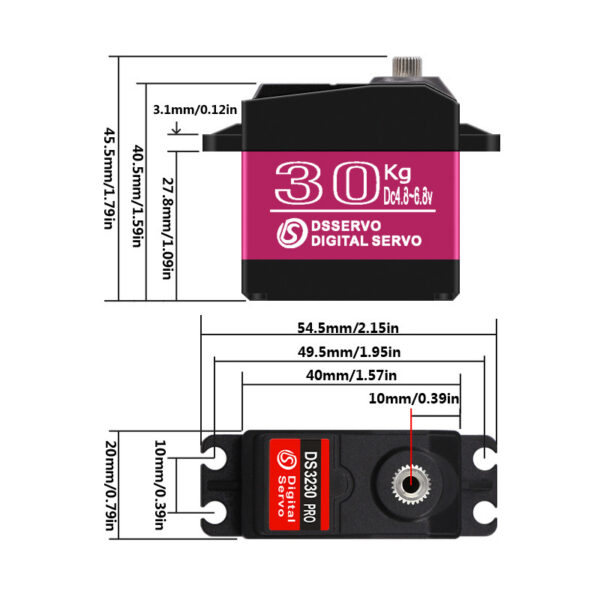

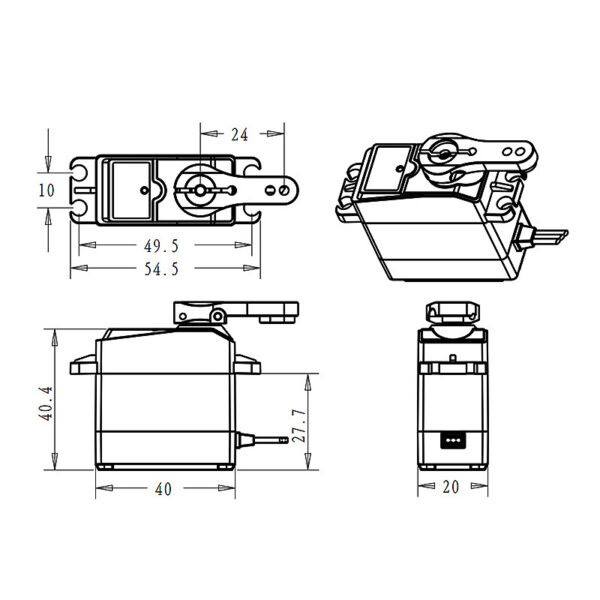

| Dimensions | Servo body: 40 × 20 × 40.5 mm. Drawing also shows 54.5 mm overall mounting width and 49.5 mm mounting-hole spacing. |
| Weight | 60 g |
| Gear train / bearings | Solid brass gears; double bearings |
| Protection | IP66, supplier-listed |
| Operating temperature | −25°C to 70°C |
| Storage temperature | −30°C to 80°C |
| Lead / connector | 300 ± 5 mm; JR 3-pin, 2.54 mm |
Before selecting a servo
Check torque at your supply voltage. Confirm the 180° or 270° version, mounting dimensions, connector and control signal. IP66 is the supplier-listed rating; installation and exposure affect protection. It does not establish suitability for underwater operation. Stall torque and stall current are test figures, not continuous operating ratings.
