DSSERVO BLS53180 180KG Brushless Digital Servo, 12–24V

Description

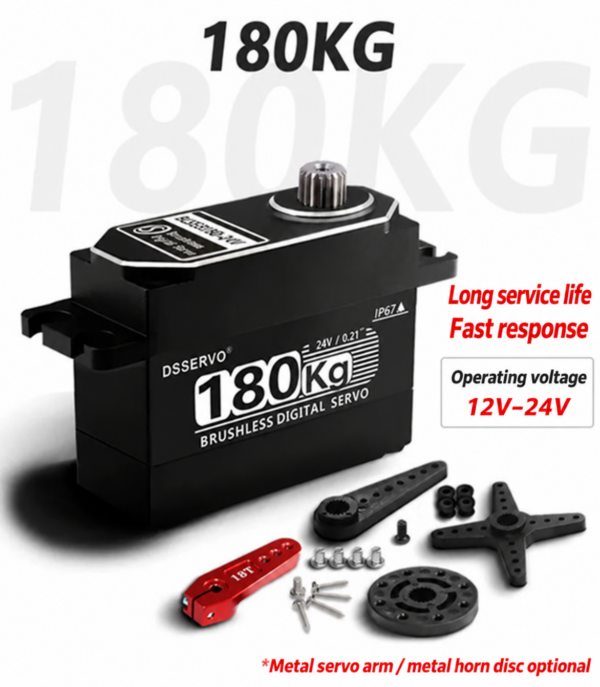

DSSERVO BLS53180 is a brushless digital servo for high-torque RC and robotic applications. The supplier artwork calls it the 180KG class and gives an operating-voltage span of 12–24 V. The 180KG marking identifies the marketed class; it is not a continuous torque rating.

Construction and control

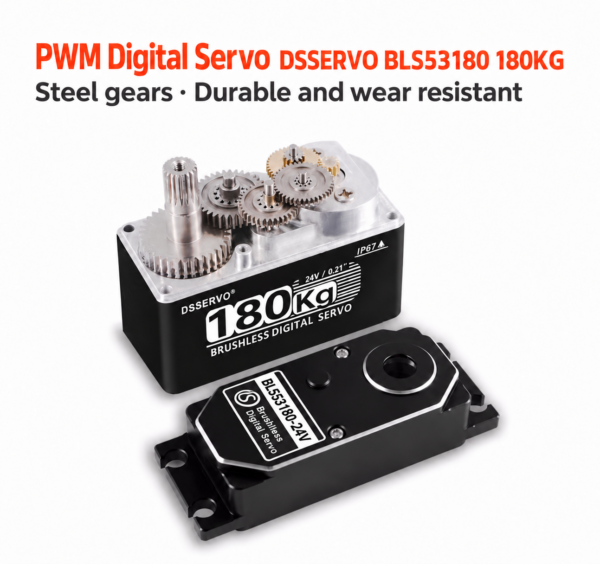

Supplied product imagery shows a metal case, steel gears and IP67 marking. The supplied control table lists PWM position control, 500–2500 µs pulse width, 1500 µs neutral, 3 µs deadband and 50–330 Hz operation. It shows 180° or 270° travel options; confirm the delivered configuration for the required travel.

Dimensions and fit

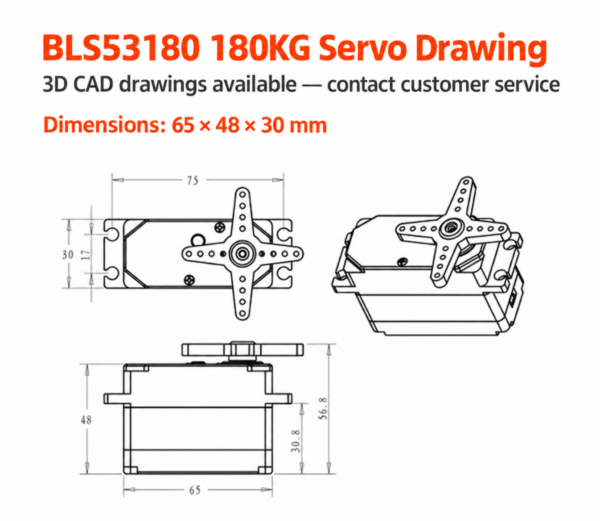

The supplied mechanical drawing lists a 65 × 30 × 48 mm servo body, with a 75 mm overall mounting span. Check the drawing and the delivered horn before designing a close-fitting mount.

Voltage and performance data

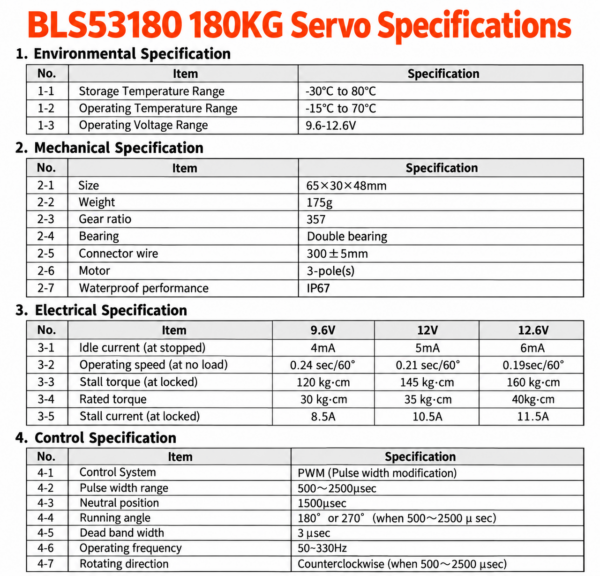

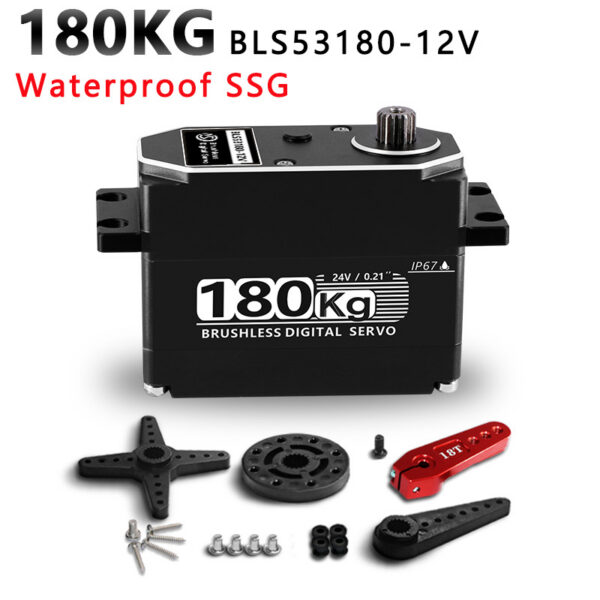

The supplied 9.6–12.6 V electrical table and the 24 V product photographs cover different voltage references. Their torque and speed figures are therefore not presented as one continuous 12–24 V performance curve. Confirm the exact ordered configuration and its matching manufacturer performance table before selecting a supply or load.

Package contents

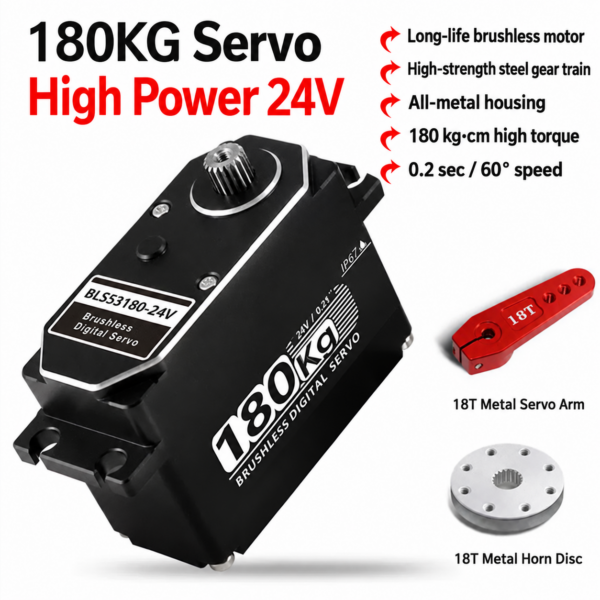

The supplier quotation lists one BLS53180 servo, one adjustable 18T metal servo arm and pictured accessories. Metal arm and horn disc options shown in the imagery should be confirmed in the order details.
