DSSERVO CLS3325 25KG-Class All-Metal Coreless Digital Servo
DSSERVO CLS3325 25KG-class coreless digital servo with an all-metal housing and metal gear train. Supplier quotation lists 5–8.4 V operation; PWM control and a 25T adjustable metal arm. Confirm performance and the required configuration before ordering.
| Brand | DSSERVO |
|---|---|
| Model | CLS3325 |
| Product class | 25KG-class digital servo |
| Motor | Coreless motor |
| Operating voltage | 5–8.4 V (supplier quotation) |
| Gear train | Metal gears; supplier quote specifies stainless steel and aluminum |
| Housing | All-metal construction per supplier artwork |
| Control | PWM |
| Connector | JR-style 3-pin, 2.54 mm (supplied wiring artwork) |
| Body footprint | 40 × 20 mm (supplied drawing) |
| Mounting span | 54.5 mm (supplied drawing) |
| Included metal arm | 25T adjustable metal servo arm (supplier quotation) |
Description
DSSERVO CLS3325 is a 25KG-class coreless digital servo with a metal housing and metal gear train. The supplied manufacturer quotation lists a 5–8.4 V operating range. The 25KG marking identifies the marketed product class and should not be treated as a continuous torque rating.
Coreless drive and metal construction

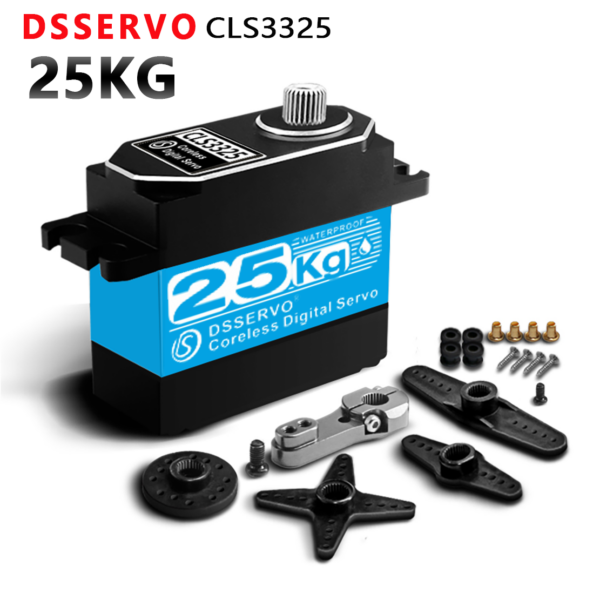

The product photos and supplier quote identify a coreless motor and metal gears. Supplier artwork describes an all-metal housing, metal drive shaft and dual ball bearings. The case is marked waterproof; an exact ingress-protection rating has not been provided in the supplied manufacturer material.
PWM control and installation
The supplied connection artwork shows a JR-style 3-pin, 2.54 mm servo connector and PWM control. Ground is brown or black, power is red, and signal is orange or white in the pictured cable versions. Confirm the delivered cable polarity and control settings before powering the unit.
Fit and accessories
The supplied drawing gives a 40 × 20 mm body footprint and 54.5 mm overall mounting-tab span. Confirm case height with DSSERVO for a close-fitting enclosure because the drawing and quotation differ slightly. The quotation lists one servo, one 25T adjustable metal servo arm and pictured accessories; confirm the exact hardware set when ordering.
Performance data
Voltage-specific torque and speed values are pending a model-matched manufacturer datasheet. Size the power supply and linkage to the confirmed configuration and load.
Additional information
| Brand | DSSERVO |
|---|---|
| Model | CLS3325 |
| Product class | 25KG-class digital servo |
| Motor | Coreless motor |
| Operating voltage | 5–8.4 V (supplier quotation) |
| Gear train | Metal gears; supplier quote specifies stainless steel and aluminum |
| Housing | All-metal construction per supplier artwork |
| Control | PWM |
| Connector | JR-style 3-pin, 2.54 mm (supplied wiring artwork) |
| Body footprint | 40 × 20 mm (supplied drawing) |
| Mounting span | 54.5 mm (supplied drawing) |
| Included metal arm | 25T adjustable metal servo arm (supplier quotation) |
