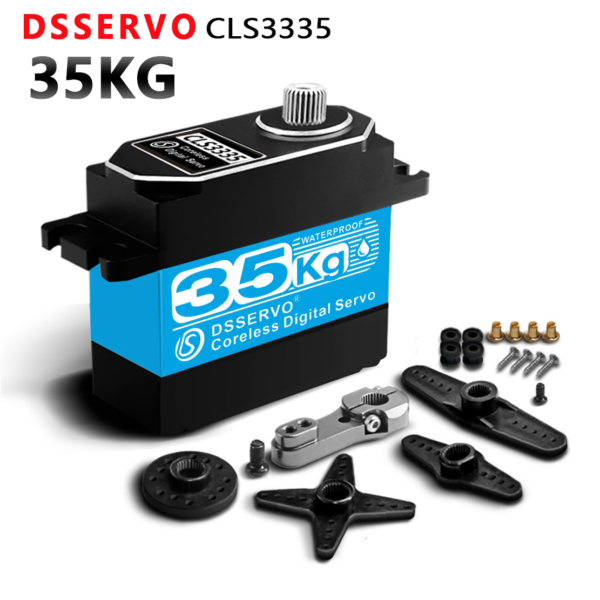

DSSERVO CLS3335 35KG-Class All-Metal Coreless Digital Servo
DSSERVO CLS3335 35KG-class all-metal coreless digital servo. Supplier quotation lists 5–8.4 V, 31/41/45 kg·cm at 5/7.4/8.4 V, and a 25T adjustable metal arm. PWM control for RC and robotic mechanisms.
| Brand | DSSERVO |
|---|---|
| Model | CLS3335 |
| Product class | 35KG-class digital servo |
| Motor | Coreless motor |
| Operating voltage | 5–8.4 V (supplier quotation) |
| Supplier-quoted torque | 31 kg·cm at 5 V; 41 kg·cm at 7.4 V; 45 kg·cm at 8.4 V |
| Supplier-quoted speed | 0.16 sec/60° at 5 V; 0.11 sec/60° at 7.4 V; 0.095 sec/60° at 8.4 V |
| Gear train | Stainless steel and aluminum (supplier quotation) |
| Housing | All-metal construction |
| Control | PWM; confirm model-specific pulse settings |
| Body footprint | 40 × 20 mm (supplied drawing) |
| Included metal arm | 25T adjustable metal servo arm (supplier quotation) |
Description
DSSERVO CLS3335 is a 35KG-class coreless digital servo with an all-metal housing and a metal gear train. The model-matched supplier quotation specifies a 5–8.4 V operating range. The 35KG print is a product-class marking, not a continuous-load torque rating.
Supplier-quoted performance
| Voltage | Torque | Speed |
|---|---|---|
| 5 V | 31 kg·cm | 0.16 sec/60° |
| 7.4 V | 41 kg·cm | 0.11 sec/60° |
| 8.4 V | 45 kg·cm | 0.095 sec/60° |
These voltage-specific figures are copied from the CLS3335 supplier quotation. The quotation does not identify a continuous torque rating; choose the load and power supply for the actual installation.
Coreless motor and metal construction
The quotation identifies a coreless motor, stainless-steel and aluminum gears, and a 60 g servo weight. The product artwork shows a metal case and a waterproof marking. No model-matched manufacturer IP code or immersion rating was supplied, so the artwork should not be read as a specific ingress-protection certification.
Control and fit

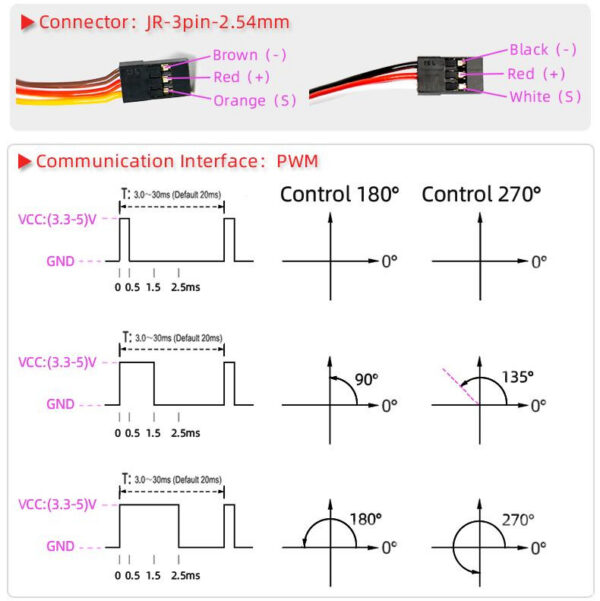

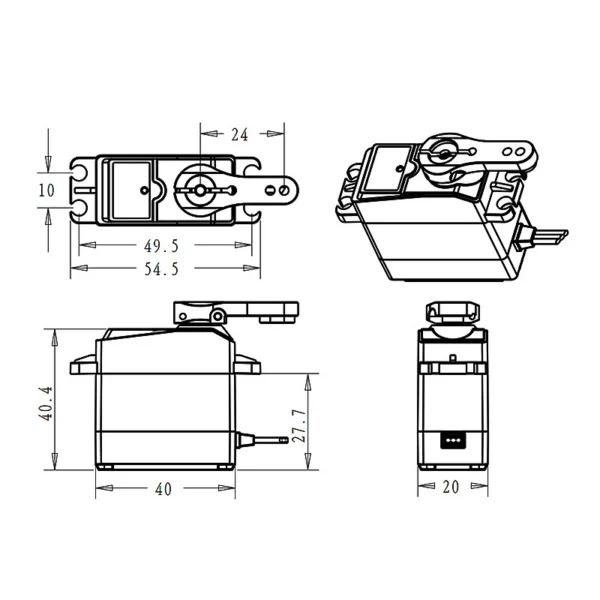

The supplied interface graphic illustrates a JR-style 3-pin, 2.54 mm connector and PWM control. Confirm the delivered cable polarity and the CLS3335-specific pulse center and operating frequency before integration. The mechanical drawing shows a 40 × 20 mm body footprint and 54.5 mm overall mounting-tab span. The drawing and quotation differ slightly on case height; confirm height before designing a close-fitting mount.
Package contents

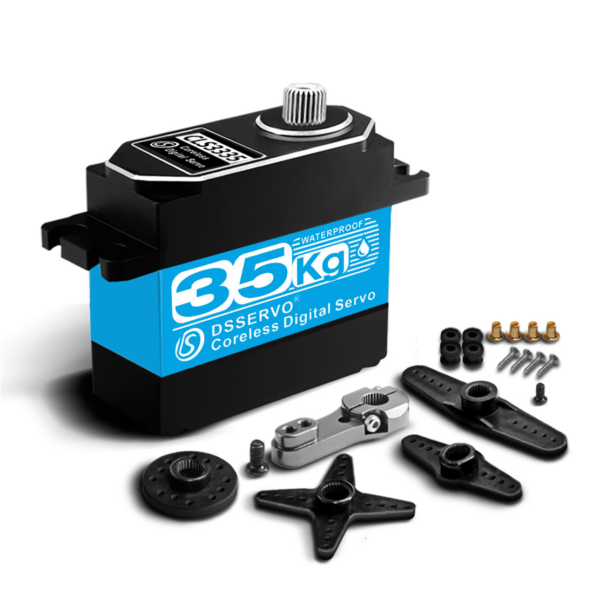

The supplier quotation lists one CLS3335 servo, one adjustable 25T metal servo arm and an accessory set as pictured. Confirm the exact accessory quantities when ordering.
Additional information
| Brand | DSSERVO |
|---|---|
| Model | CLS3335 |
| Product class | 35KG-class digital servo |
| Motor | Coreless motor |
| Operating voltage | 5–8.4 V (supplier quotation) |
| Supplier-quoted torque | 31 kg·cm at 5 V; 41 kg·cm at 7.4 V; 45 kg·cm at 8.4 V |
| Supplier-quoted speed | 0.16 sec/60° at 5 V; 0.11 sec/60° at 7.4 V; 0.095 sec/60° at 8.4 V |
| Gear train | Stainless steel and aluminum (supplier quotation) |
| Housing | All-metal construction |
| Control | PWM; confirm model-specific pulse settings |
| Body footprint | 40 × 20 mm (supplied drawing) |
| Included metal arm | 25T adjustable metal servo arm (supplier quotation) |
