DSSERVO CLS3345 45KG-Class All-Metal Coreless Digital Servo
DSSERVO CLS3345 45KG-class coreless digital servo with metal construction and pictured accessories. Model-specific voltage, torque, speed and price await manufacturer confirmation.
| Brand | DSSERVO |
|---|---|
| Model | CLS3345 |
| Product class | 45KG-class digital servo |
| Motor | Coreless motor (product artwork) |
| Operating voltage | Manufacturer confirmation required |
| Torque | 45KG class marking only; voltage-specific rating pending |
| Gear train | Metal gear train (supplier marketing artwork) |
| Housing | All-metal construction (supplier marketing artwork) |
| Control | PWM illustration supplied; model-specific settings pending |
| Connector | JR-style 3-pin 2.54 mm (supplied illustration) |
| Body footprint | 40 × 20 mm (supplied drawing) |
| Protection marking | Waterproof on case; IP code not supplied |
Description

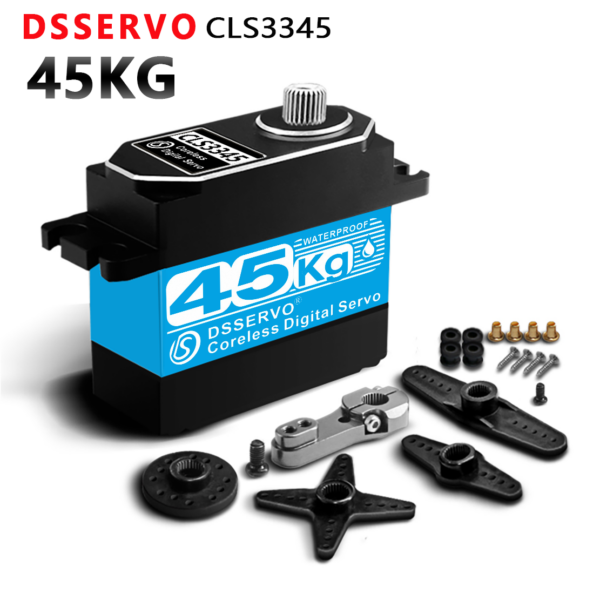

DSSERVO CLS3345 is a 45KG-class coreless digital servo shown with an all-metal case and accessory set. The 45KG marking identifies the marketed product class; a model-matched voltage-specific torque curve has not been supplied for this listing.
Construction
The supplied product and marketing images identify a coreless servo with a metal housing and metal gear train. The case carries a waterproof marking, but the supplied CLS3345 material does not establish a specific IP or immersion rating.
Control and connection

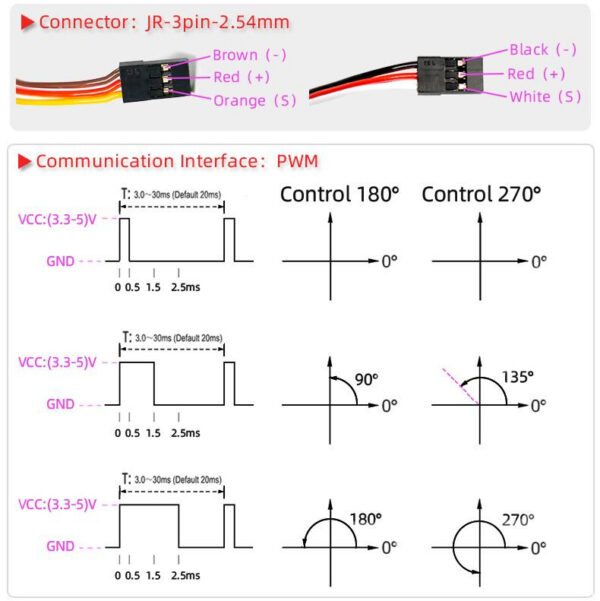

The supplied interface illustration shows a JR-style 3-pin, 2.54 mm connector and PWM position-control examples. The diagram is generic across several servo models, so confirm the delivered CLS3345 cable polarity, pulse center, frequency and travel configuration before integration.
Mechanical fit

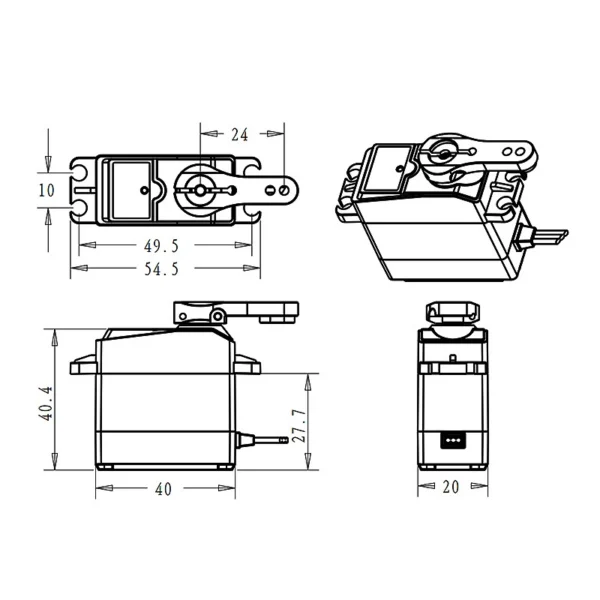

The supplied drawing shows a 40 × 20 mm body footprint and 54.5 mm overall mounting-tab span. Two supplier graphics differ slightly on case height; confirm the exact height before making a close-fitting mount.
Accessories and electrical ratings

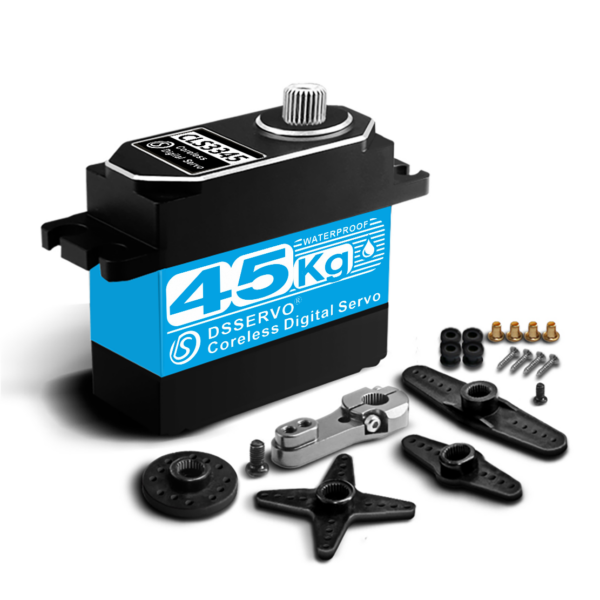

The product photographs show a metal servo arm, plastic horns and mounting hardware. Confirm the exact package contents with DSSERVO. Model-specific voltage, torque, speed, current and package details require confirmation from DSSERVO before choosing a power supply or load.
Additional information
| Brand | DSSERVO |
|---|---|
| Model | CLS3345 |
| Product class | 45KG-class digital servo |
| Motor | Coreless motor (product artwork) |
| Operating voltage | Manufacturer confirmation required |
| Torque | 45KG class marking only; voltage-specific rating pending |
| Gear train | Metal gear train (supplier marketing artwork) |
| Housing | All-metal construction (supplier marketing artwork) |
| Control | PWM illustration supplied; model-specific settings pending |
| Connector | JR-style 3-pin 2.54 mm (supplied illustration) |
| Body footprint | 40 × 20 mm (supplied drawing) |
| Protection marking | Waterproof on case; IP code not supplied |
