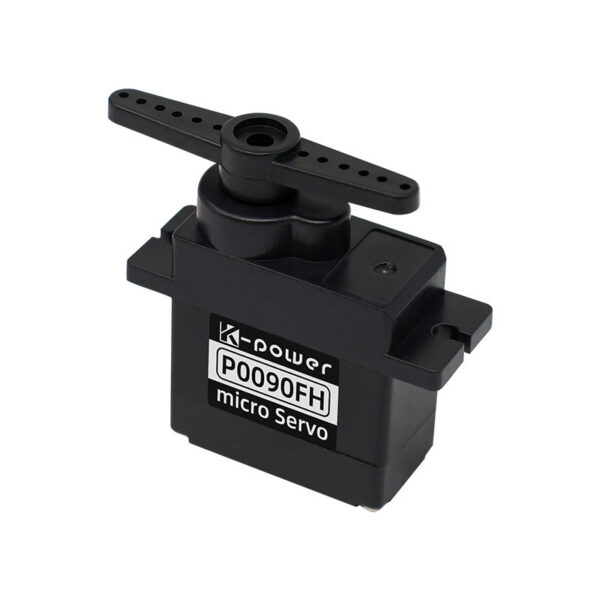

Kpower P0090FH 9g clutch micro servo with black servo horn

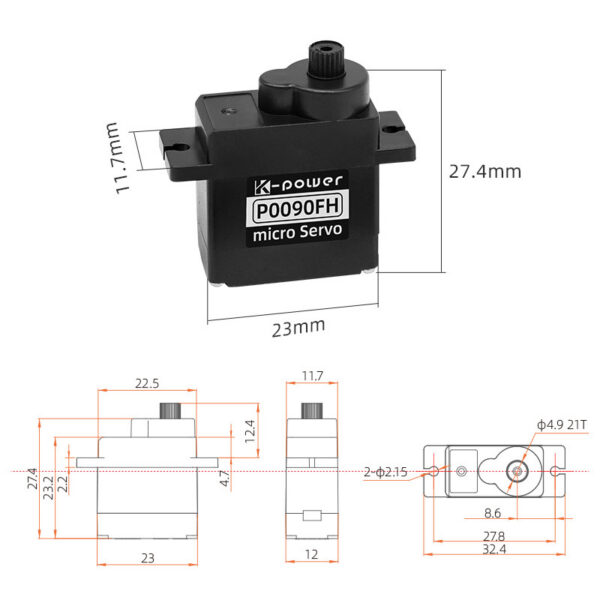

P0090FH micro servo dimensional drawing showing a 23 × 11.7 × 27.4 mm body and a 4.9 mm 21-tooth spline.

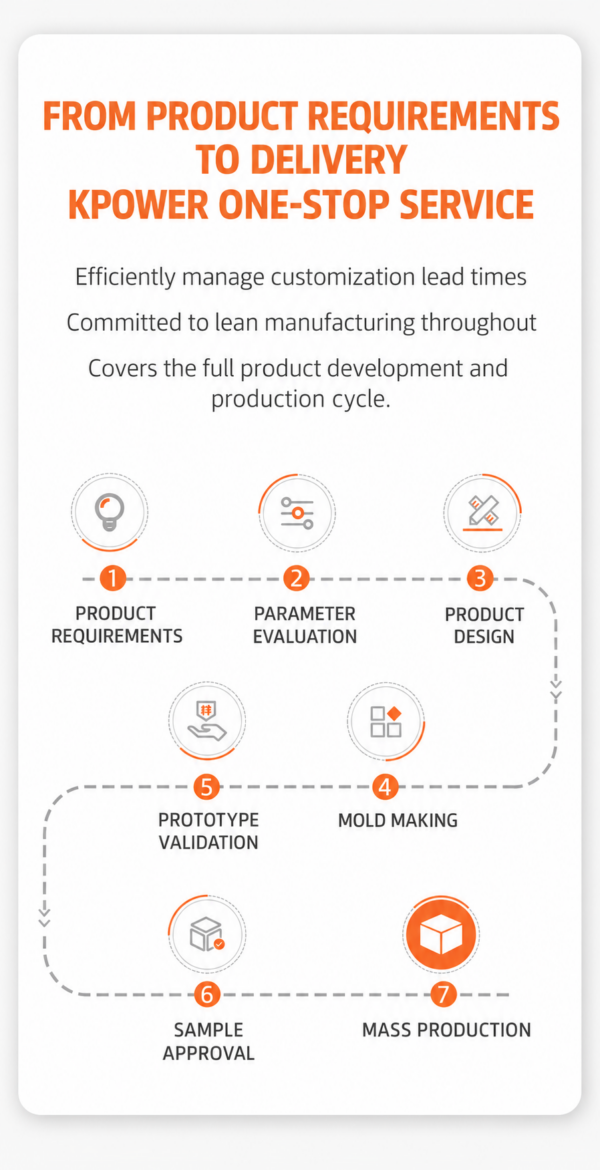

Supplier infographic showing a seven-step servo development and production flow from requirements and design through sample approval and mass production.

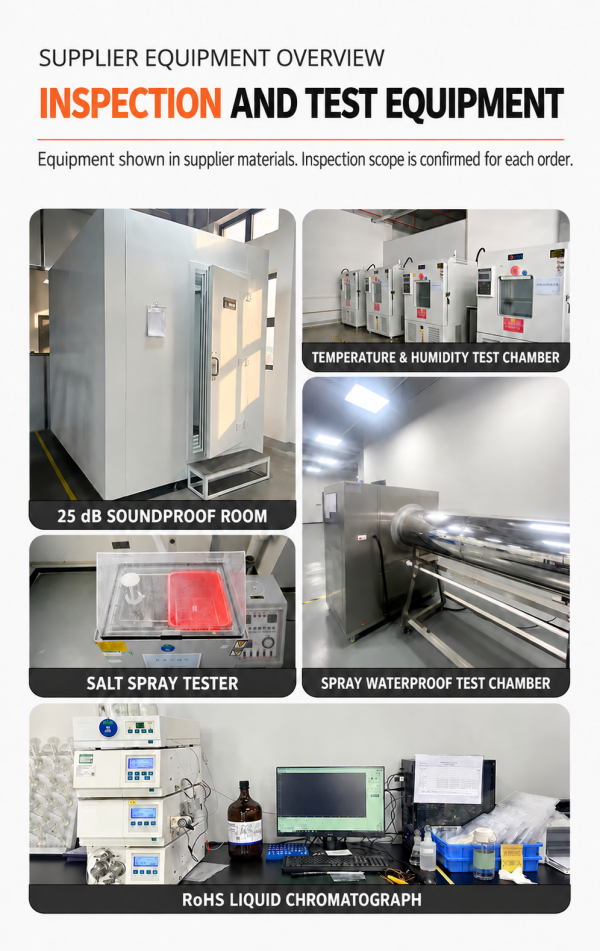

Supplier infographic showing servo inspection and test equipment, including soundproof, temperature and humidity, salt spray and waterproof test chambers.

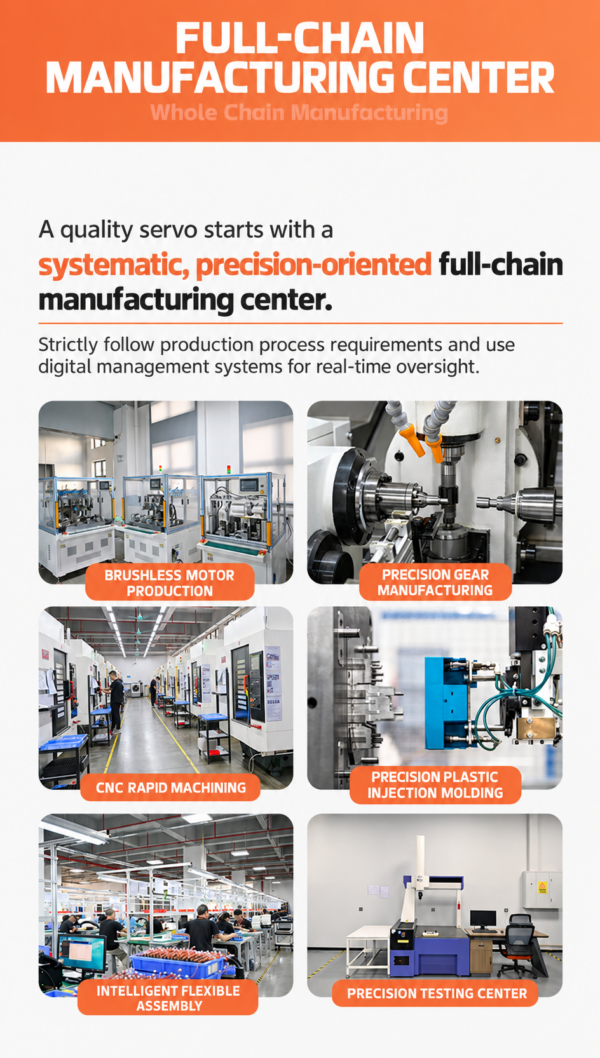

Supplier infographic showing servo manufacturing areas, including motor production, precision gears, CNC machining, molding, assembly and testing.

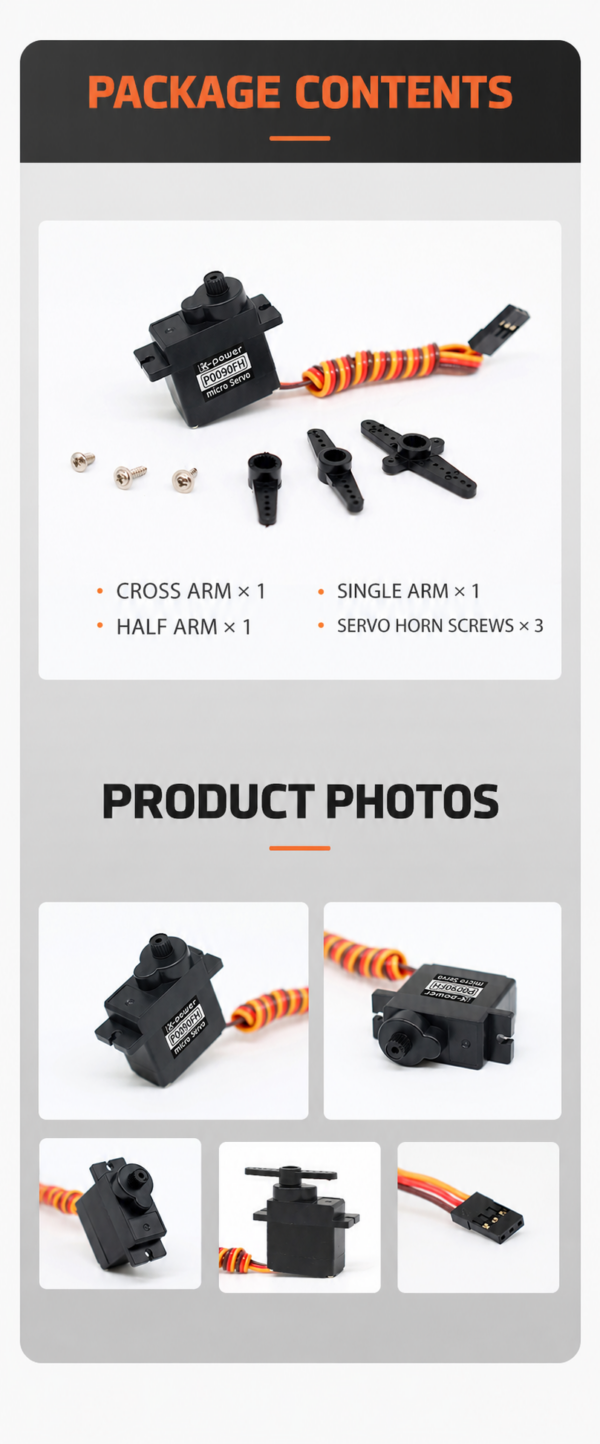

P0090FH micro servo package contents with servo, cable, three servo horns, mounting screws and product views.

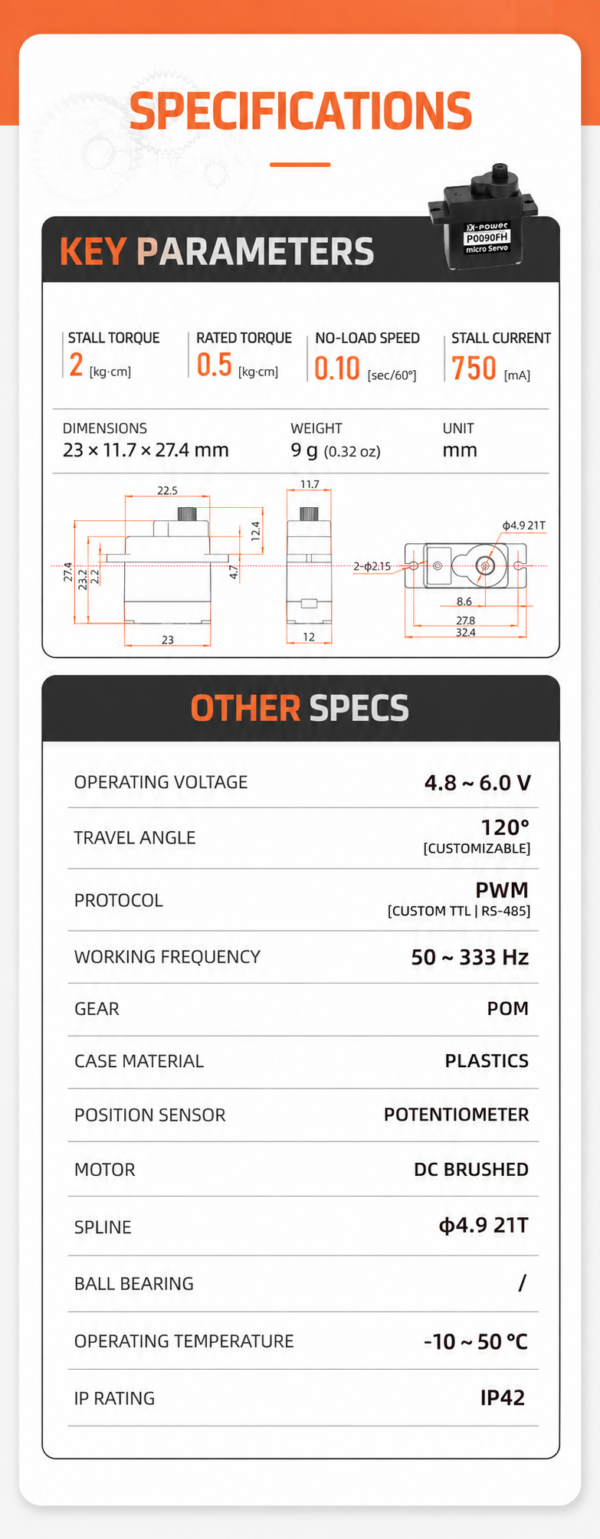

P0090FH micro servo specification table and dimensional drawing, including torque, voltage, speed, current, size and control details.

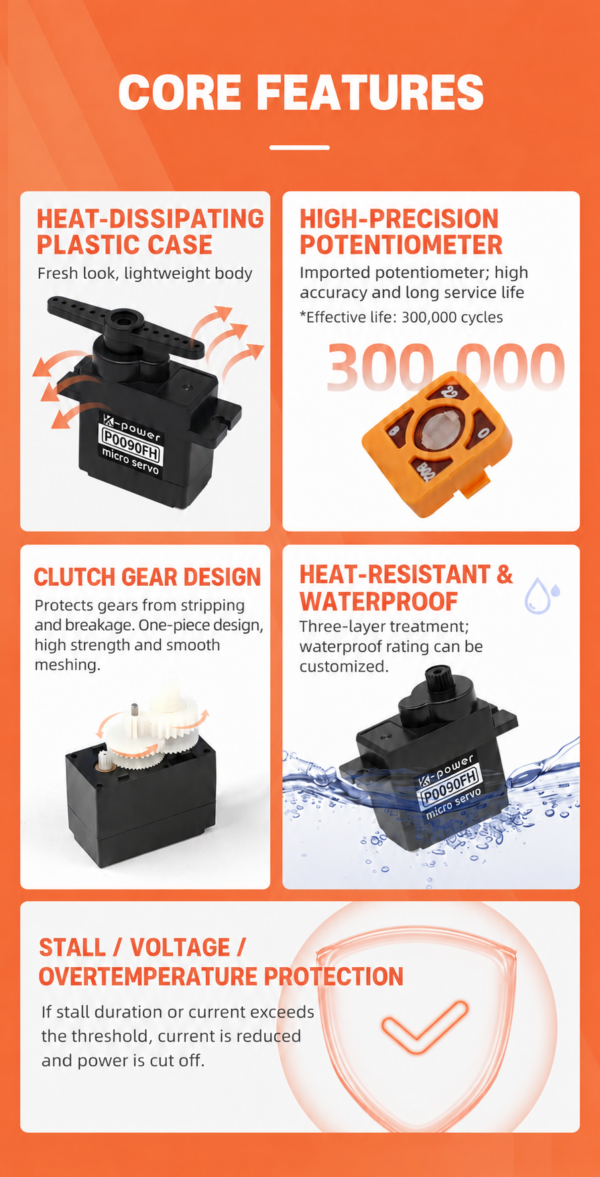

P0090FH micro servo feature infographic showing the case, potentiometer, clutch gear, configurable water resistance and protection functions.

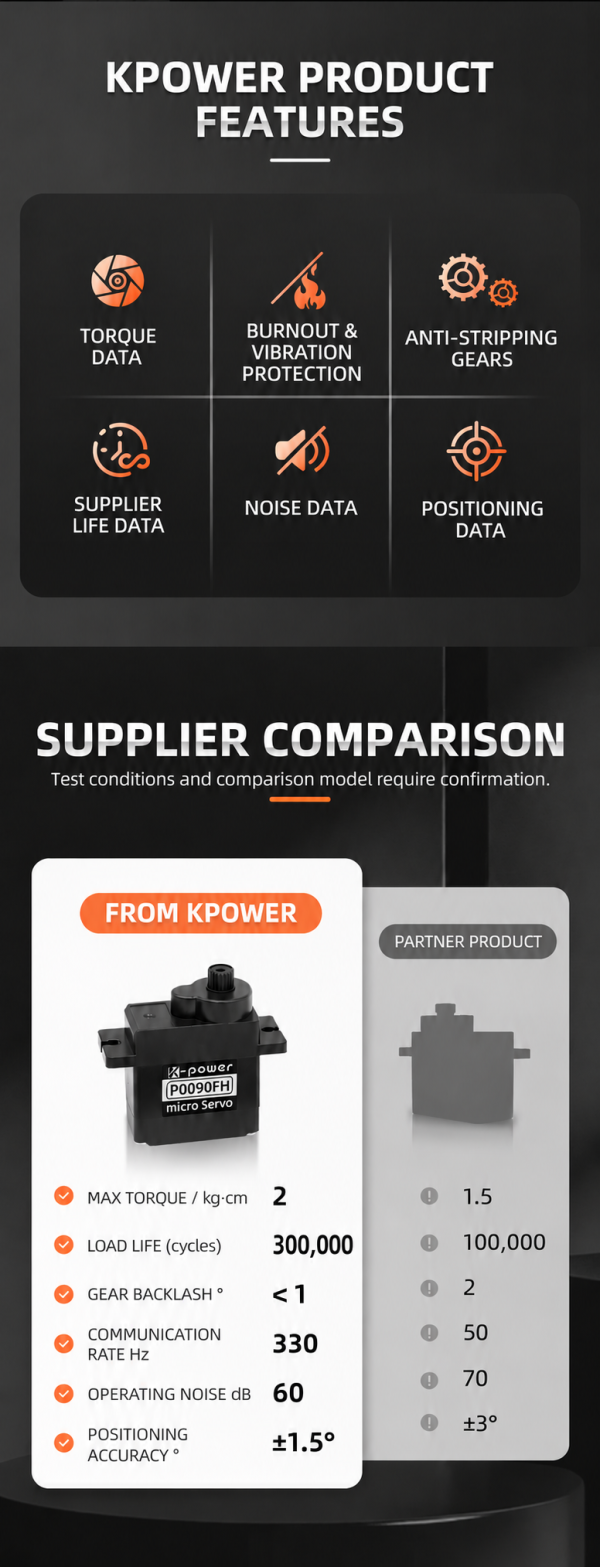

P0090FH servo feature infographic highlighting torque, clutch gears, vibration protection, service life, noise and positioning precision.

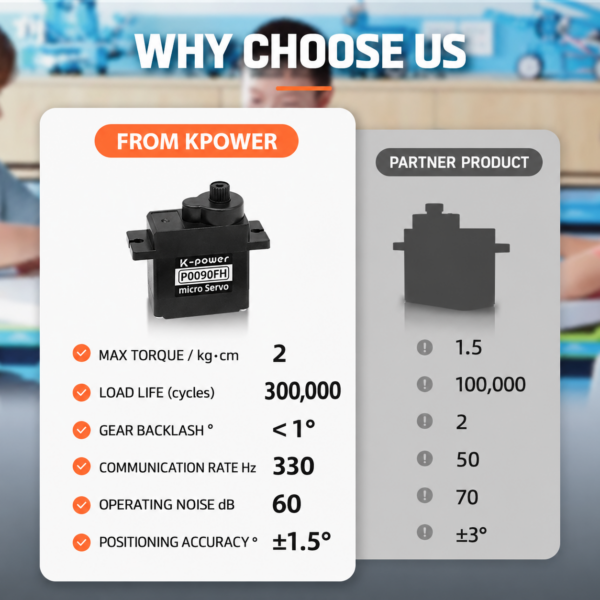

Supplier infographic comparing the P0090FH micro servo with a partner product by torque, service life, gear backlash, communication rate, noise and positioning accuracy.

Kpower P0090FH 9g Clutch Micro Servo

Kpower P0090FH 9g clutch micro servo with a clutch gear design. Supplier-listed specs include 2.0 kg·cm stall torque, 4.8–6.0 V operation and 23 × 11.7 × 27.4 mm dimensions.

Request a product quote

Description

Kpower P0090FH 9g Clutch Micro Servo

The Kpower P0090FH 9g clutch micro servo combines a compact 9 g body with a clutch gear design. The supplier describes the clutch as helping reduce gear damage when the servo is overloaded.

Supplier-listed specifications

  • Operating voltage: 4.8–6.0 V
  • Stall torque: 2.0 kg·cm; rated torque: 0.5 kg·cm
  • No-load speed: 0.10 s/60°; stall current: 750 mA
  • Dimensions: 23 × 11.7 × 27.4 mm; weight: 9 g
  • Travel: 120° (customizable)
  • Control: PWM; TTL or RS-485 customization listed by the supplier
  • Gear material: POM; position sensor: potentiometer; motor: brushed DC
  • Output spline: 4.9 mm, 21 teeth
  • Operating temperature: −10 to 50 °C; protection rating: IP42

Control and configuration

Confirm the required control protocol, travel, voltage and configuration before ordering. Specifications are transcribed from the supplier listing and may vary by configuration.
